Spartan V2 Chassis Kit

V2 Upgrade: We improved clearance, link geometry and extended shock towers for more tuning options from 12.8" to 13.5" wheelbase. Also, we have added the option to buy just the rails with skid plate for those that own the Spartan v1 and want to upgrade or those that like to use a transmission of their choice (if you're going this route remember to use a very compact transmission like our Phantom X or Free Solo).

Designed for war, the Spartan Chassis have a super forward skid improving by its nature the weight bias of the rig and providing a really low center of gravity. This chassis features a super compact and lightweight titanium transmission integrated to the chassis rails and a 21º angle on the skid plate.

Chassis kit includes:

2x Chassis Rails

1x Complete Titanium Transmission

1x Skid Plate 2x Sliders

1x Complete Carrier Bearing with titanium shaft

1x Body Mount Kit

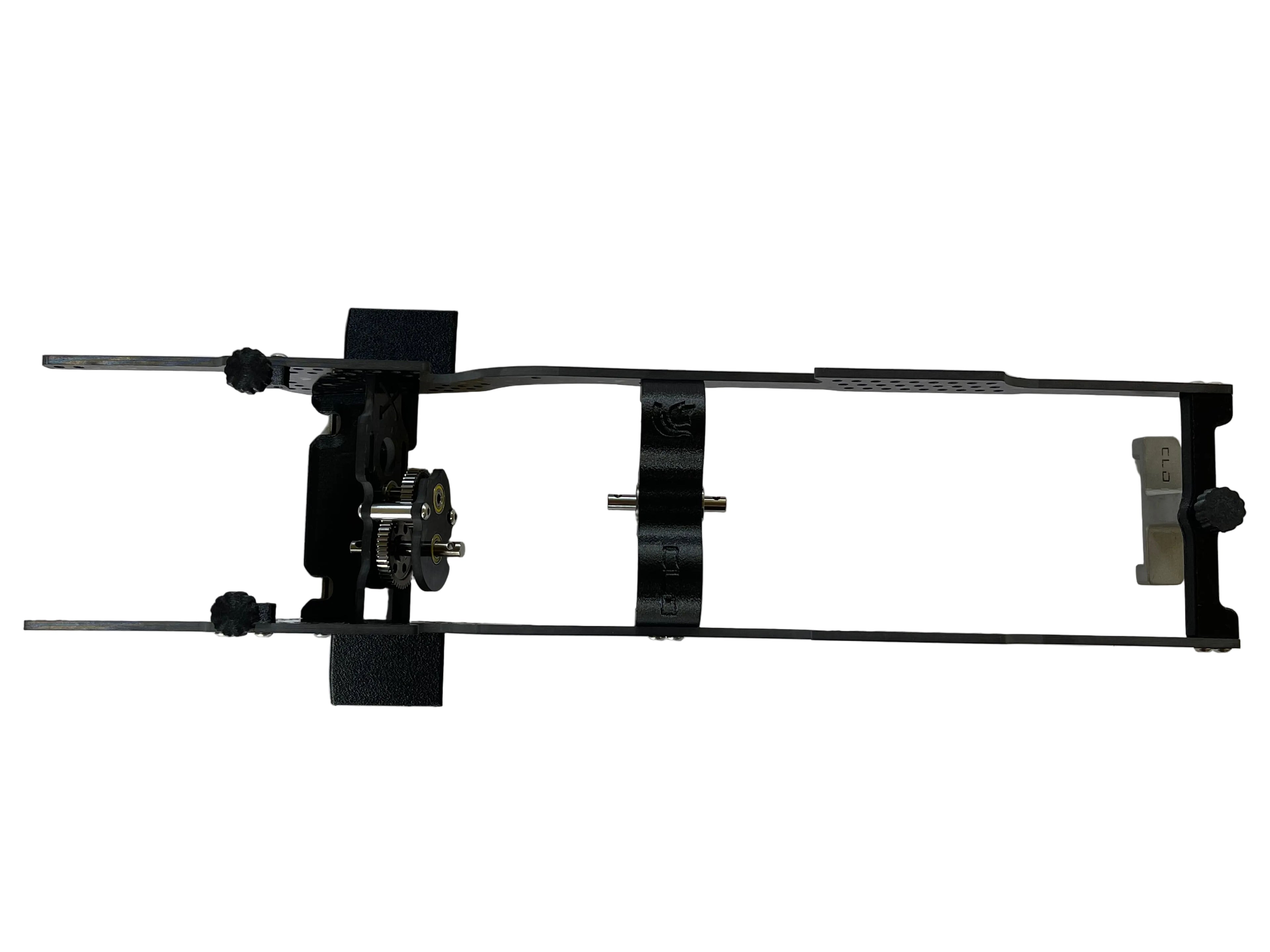

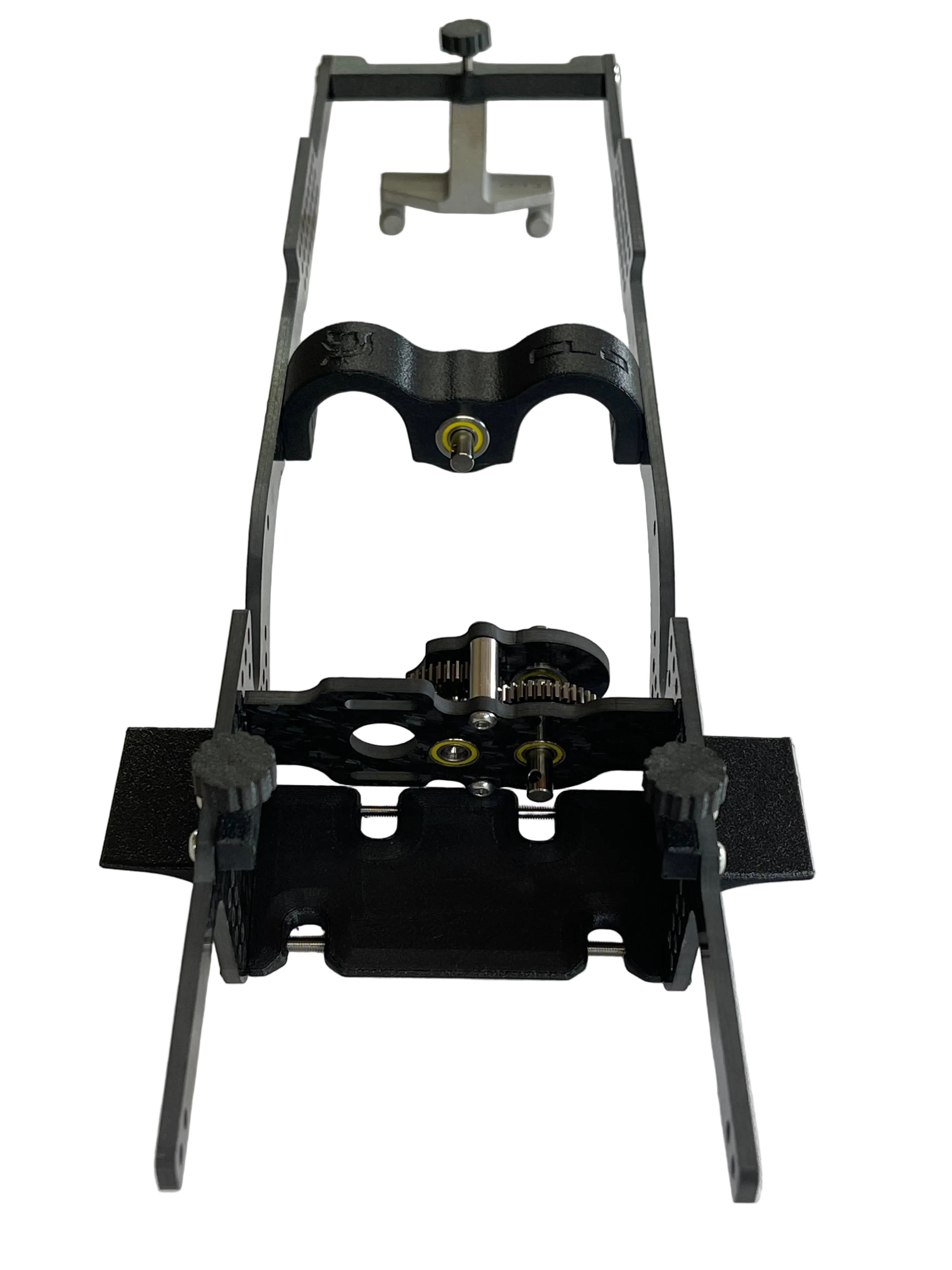

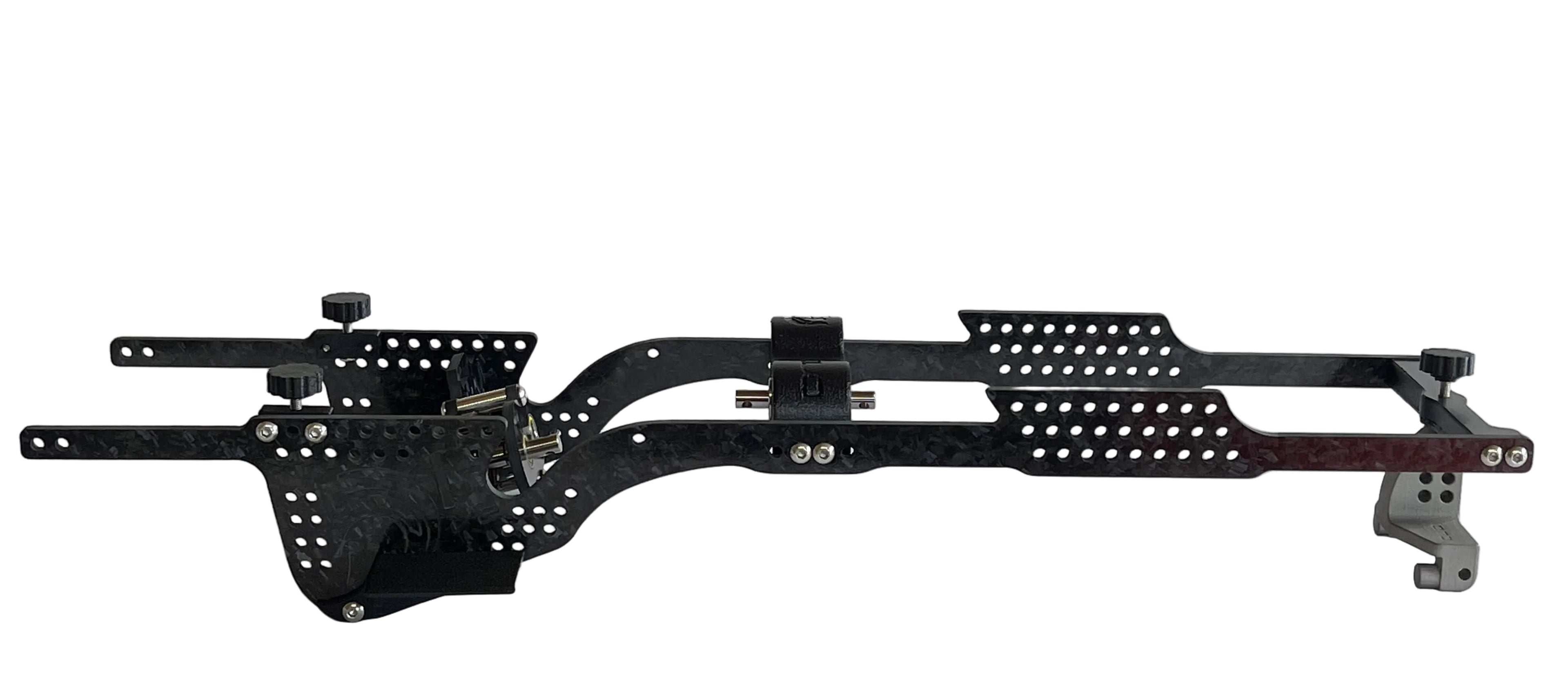

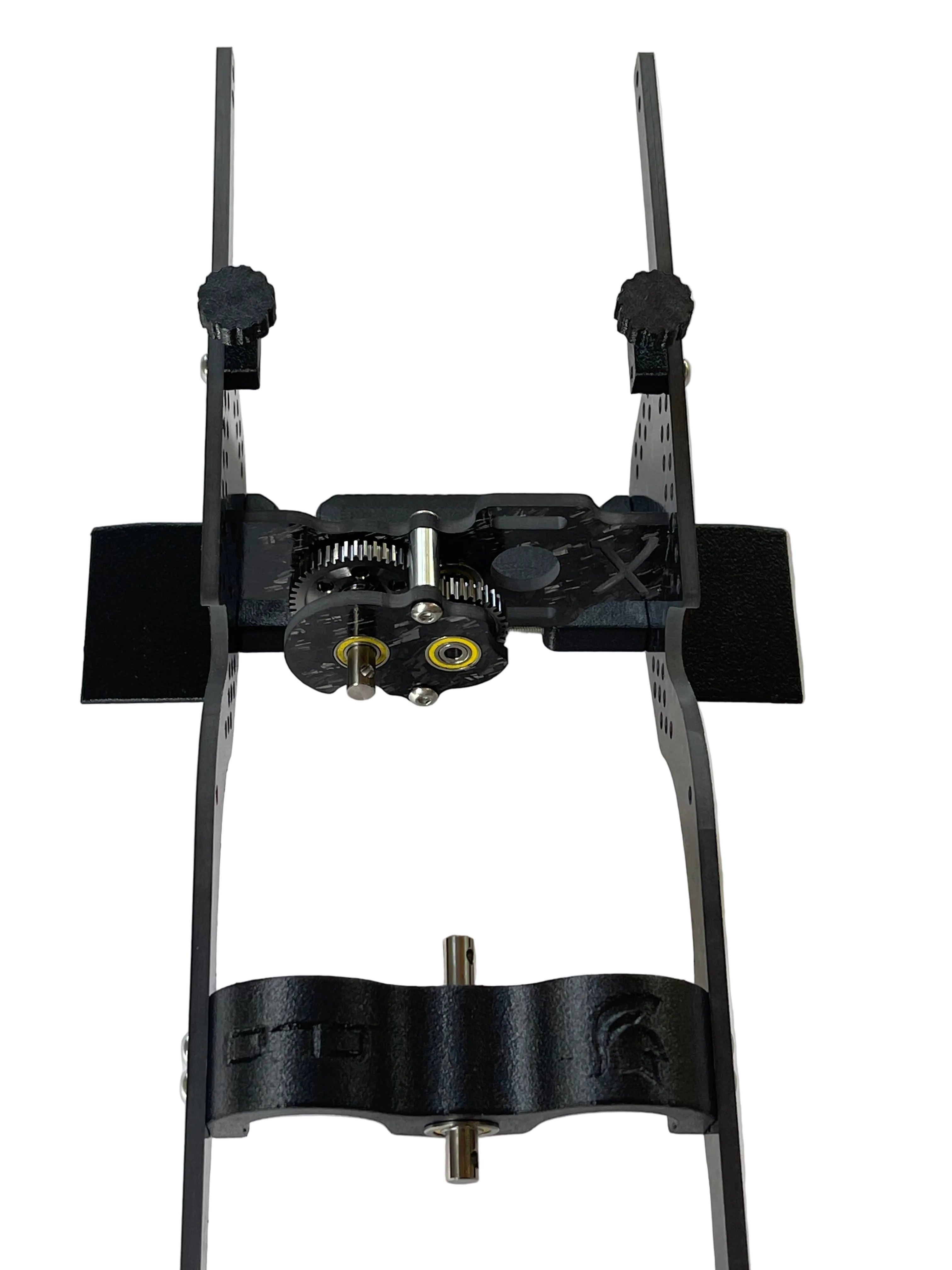

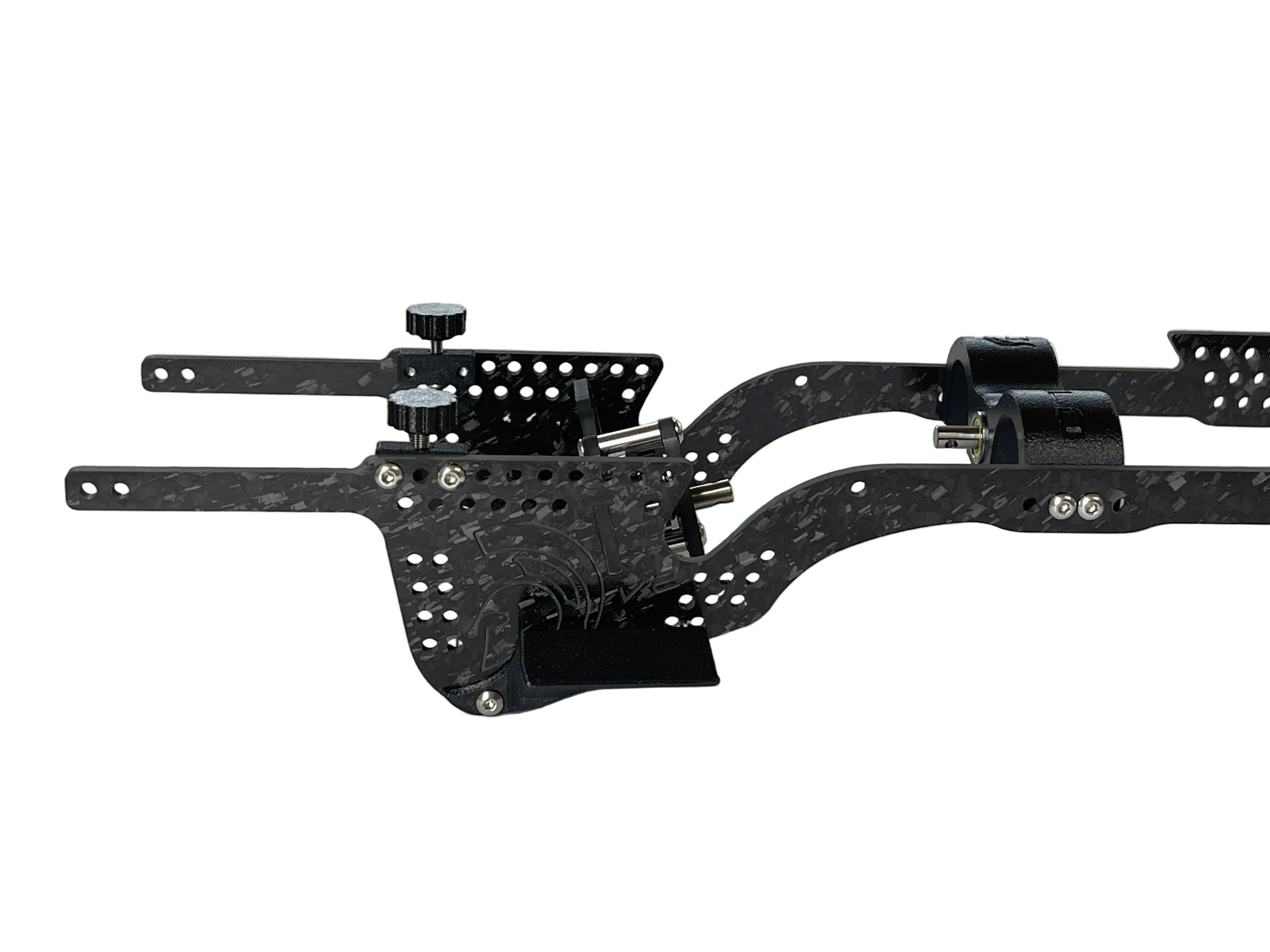

The chassis comes assembled as shown in the pictures and the width is 78mm.

Transmission ratios by pinion gears are the following:

11t: 13.09

12t: 12

13t: 11.07

Chassis Links:

apothecary.rc : https://www.instagram.com/apothecary.rc?utm_source=ig_web_button_share_sheet&igsh=ZDNlZDc0MzIxNw==

linklab_rc: https://www.instagram.com/linklab_rc?utm_source=ig_web_button_share_sheet&igsh=ZDNlZDc0MzIxNw==

If anyone wants to make their own links just send us a message to send a template of the links.
