MulletDrive Transmission

1/10 Mullet Transmission for those that like front straight axle and rear portal axle setup. The MulletDrive is a lightweight transmission that puts both outputs low (front and rear) to keep a good driveshaft angle.

Specs : 48p Gr5 Titanium Gears

Color : Black Forged Carbon

Width : 60.2mm

Height : 44.6mm

Length : 19.8mm

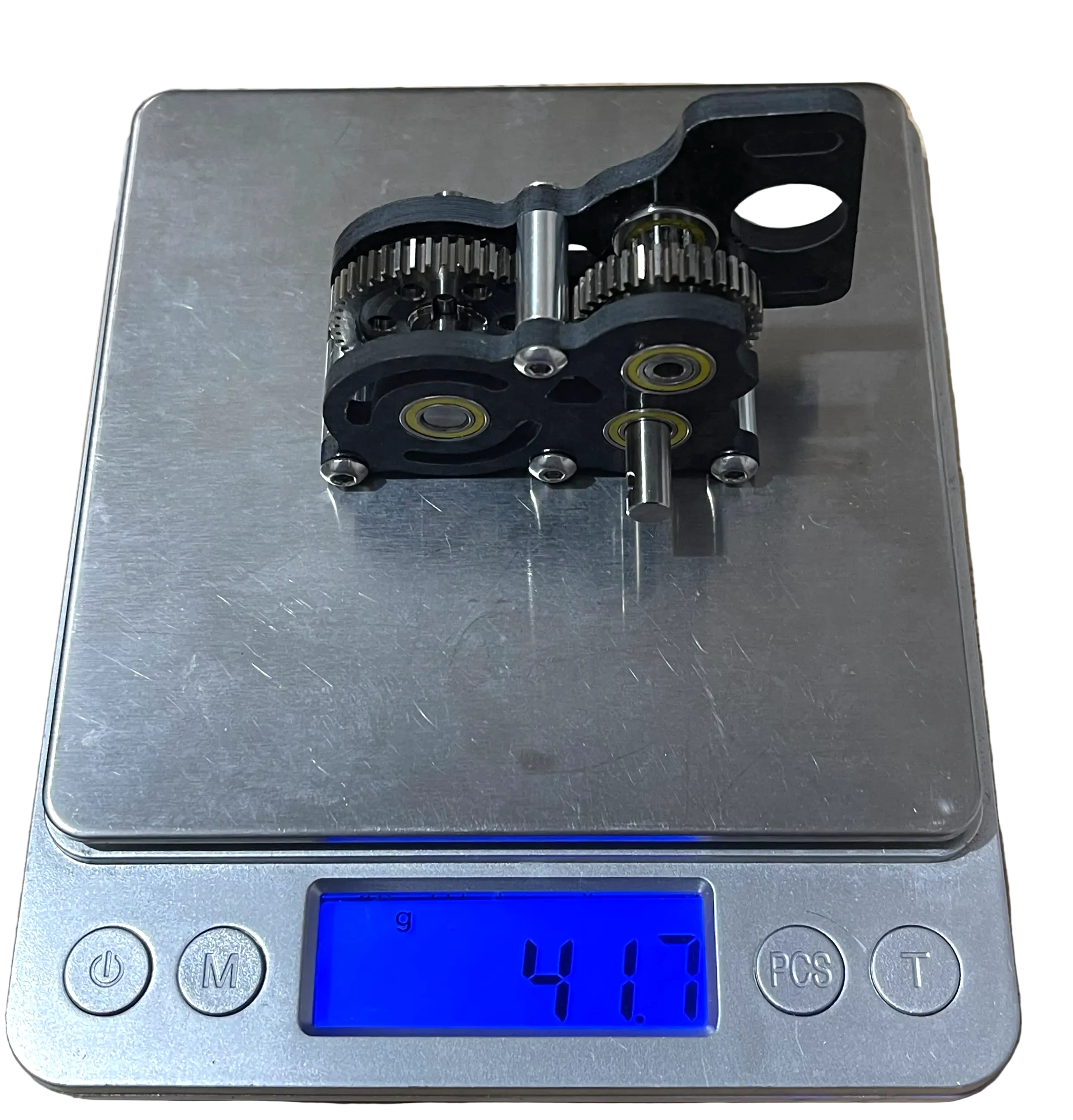

Weight : Approximately 41.7 grams

Ratios :

Internal front ratio: 4.0

Internal rear ratio: 3.0

Overdrive: 36%

Recommended pinion gears: 9t to 13t

Overall front output (straight axle [AR44/F10/Element])

9t: 60.00

10t: 54.00

11t: 49.09

12t: 45.00

13t: 41.54

Overall rear output (Ar45/Capra)

9t: 86.40

10t: 77.76

11t: 70.69

12t: 64.8

13t:59.82
