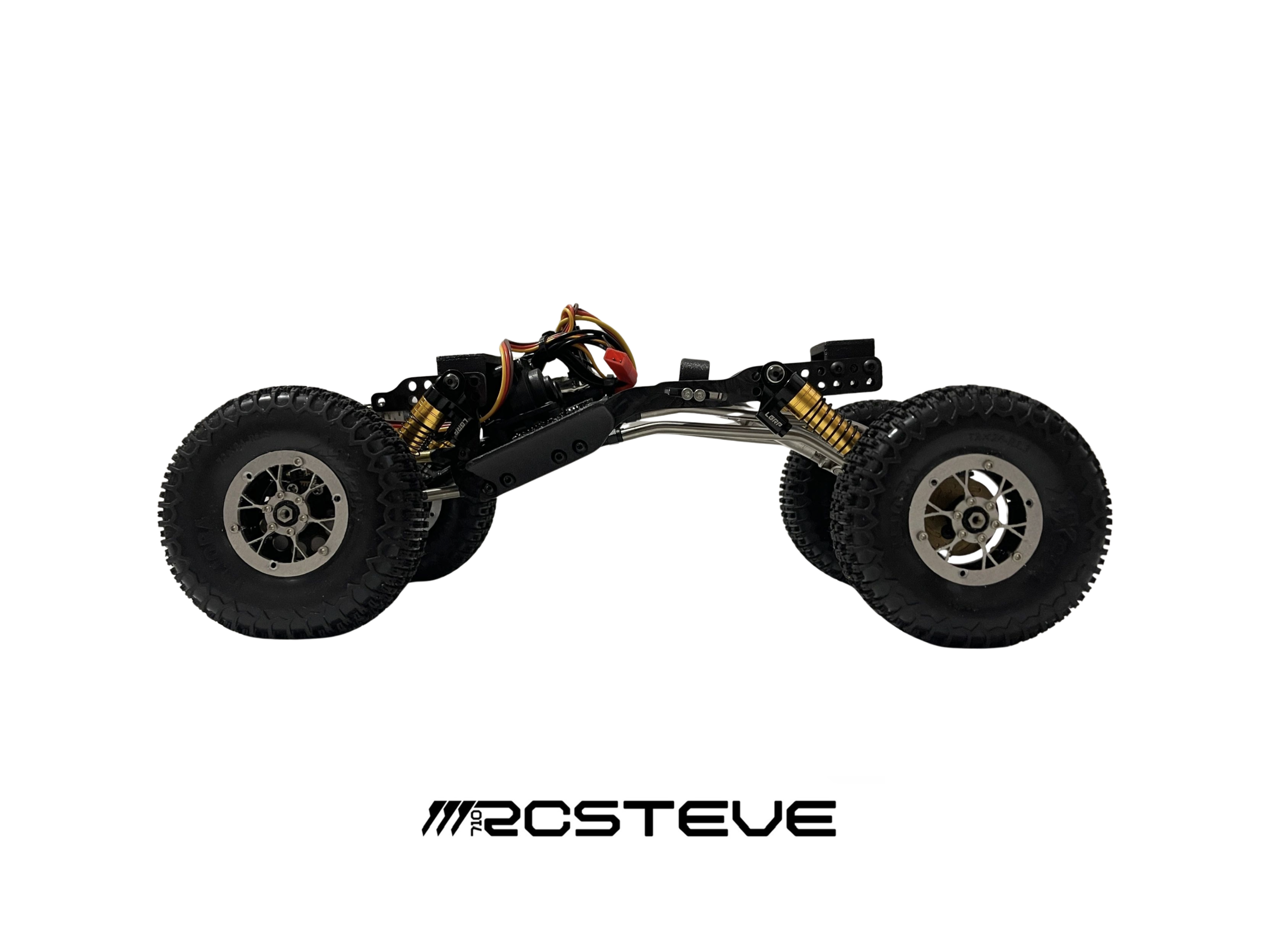

Apollo Chassis TRX4M

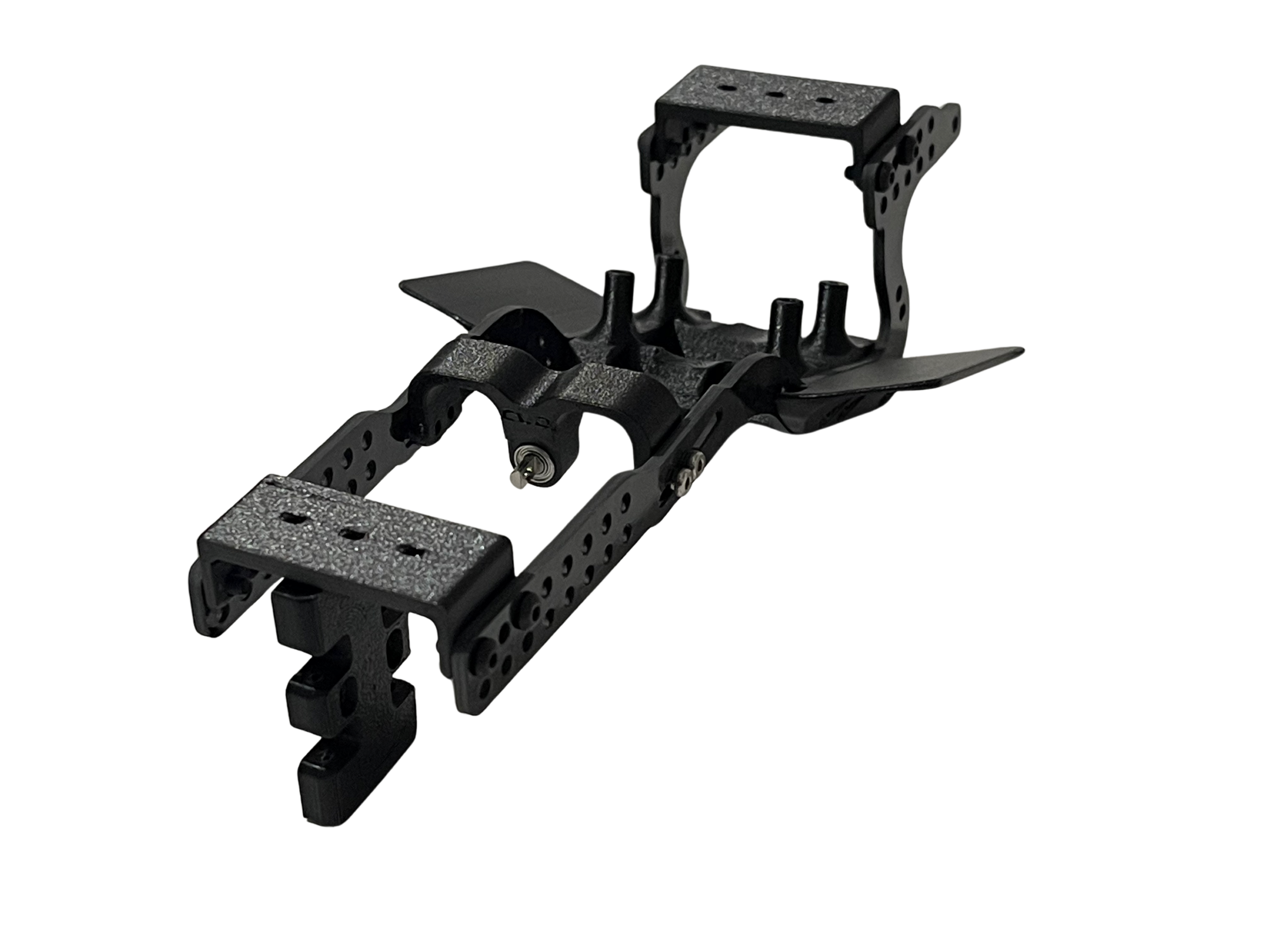

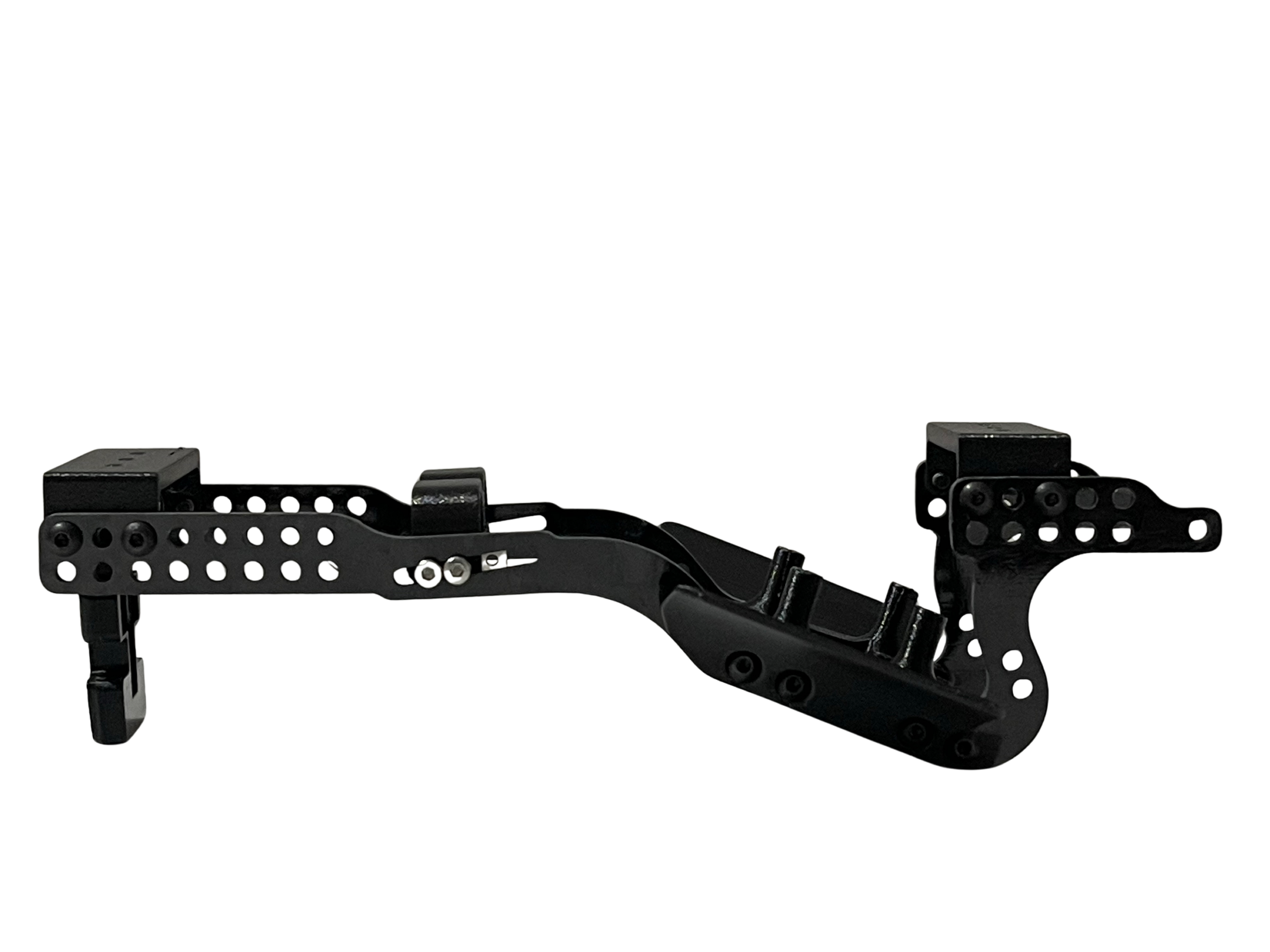

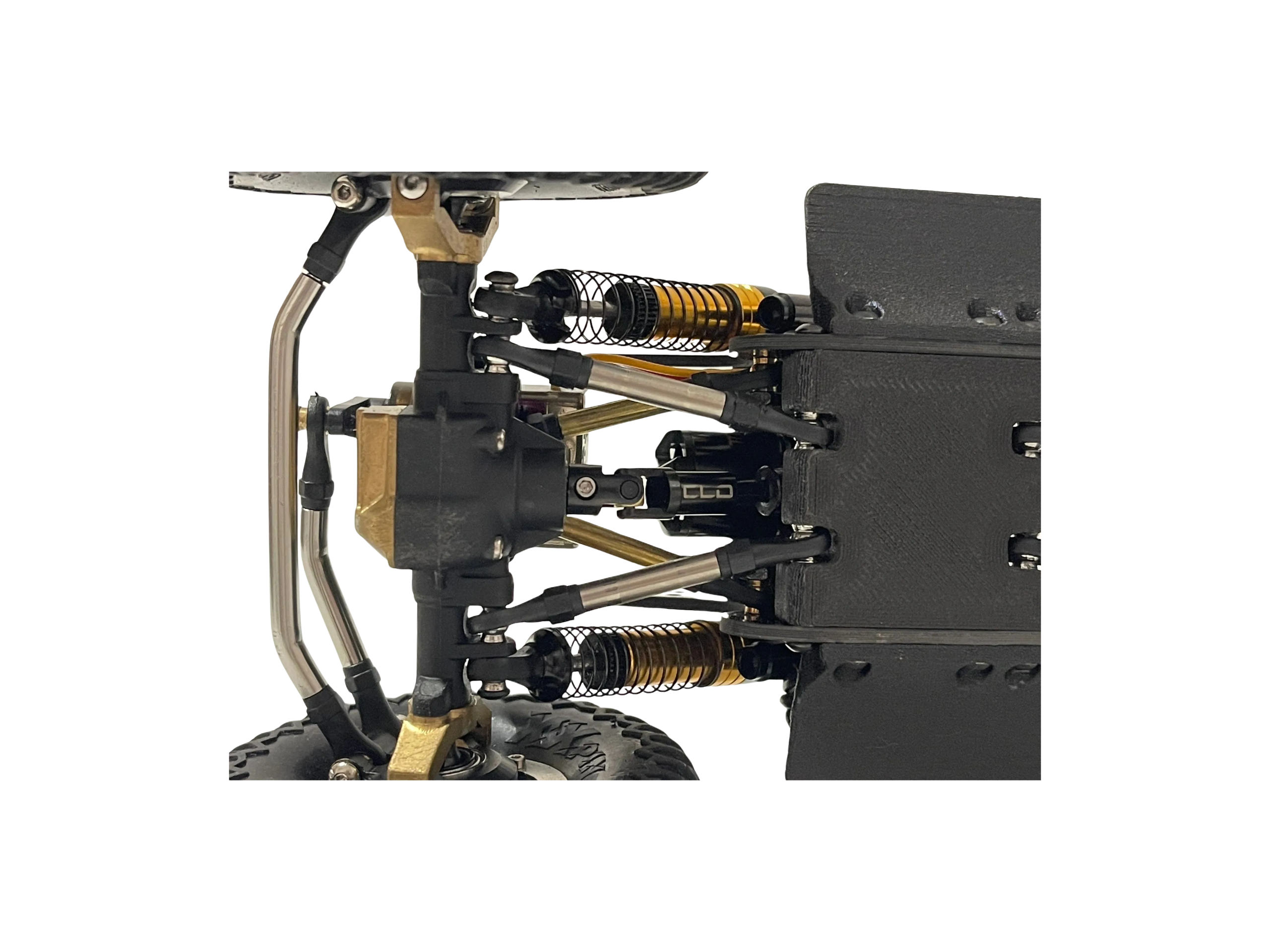

The Apollo chassis has been made thinking on what has been a limitation on the trx4m platform, a forward skid. This chassis features a forward skid design bringing lots of clearance with a 20º skid plate and a carrier bearing to keep the clearance on the back. To achieve this forward skid we made our own driveshaft that let the front axle get closer to the skid and an offset skid plate to relieve the angles of the front and rear driveshafts and allow more room between motor and driveshaft.

Intended wheelbase is 180mm but can be extended up to 200mm.

Driveshafts needed to complete for a 180mm wheelbase:

• Front axle to Transmission: We provide it.
• Transmission to Carrier: SCX24 Deadbolt front driveshaft
• Carrier to Rear Axle: TRX4M HobbyPark rear driveshaft or you can cut a rear trx4m driveshaft to make it fit.

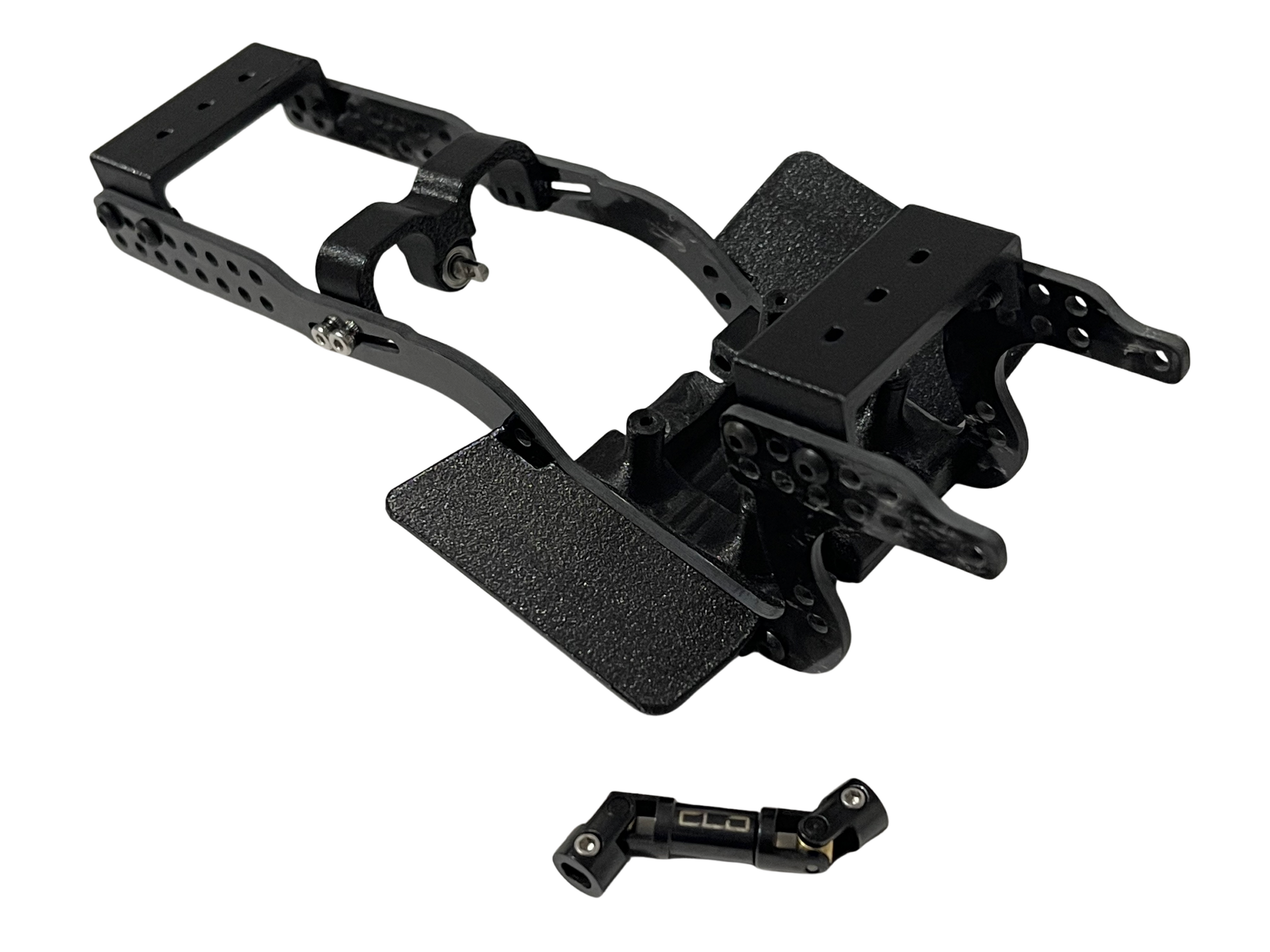

Chassis kit includes:

2 x Forged Carbon Rails

1 x Flat Skid Plate 2 x Sliders

1 x Carrier Bearing with Titanium Shaft

1 x Driveshaft for the front axle

2 x Body Mounts

Chassis Links:

RCSteve710: https://rcsteve.com/products/cl-designs-apollo-4m?variant=52088068669734

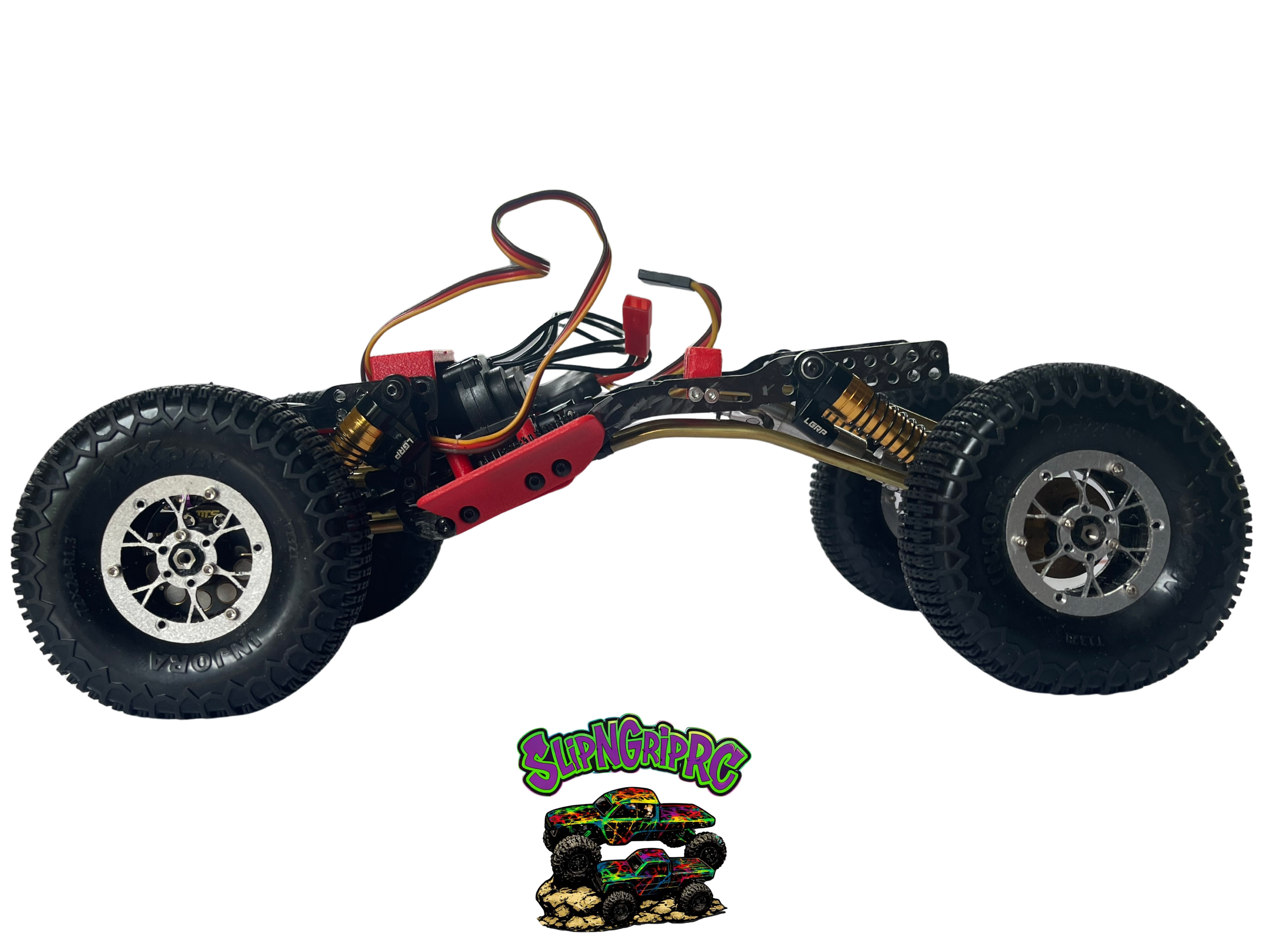

Slipngriprc: https://www.instagram.com/slipngriprc?igsh=MTFqbzhlcDhpYXBybw==
